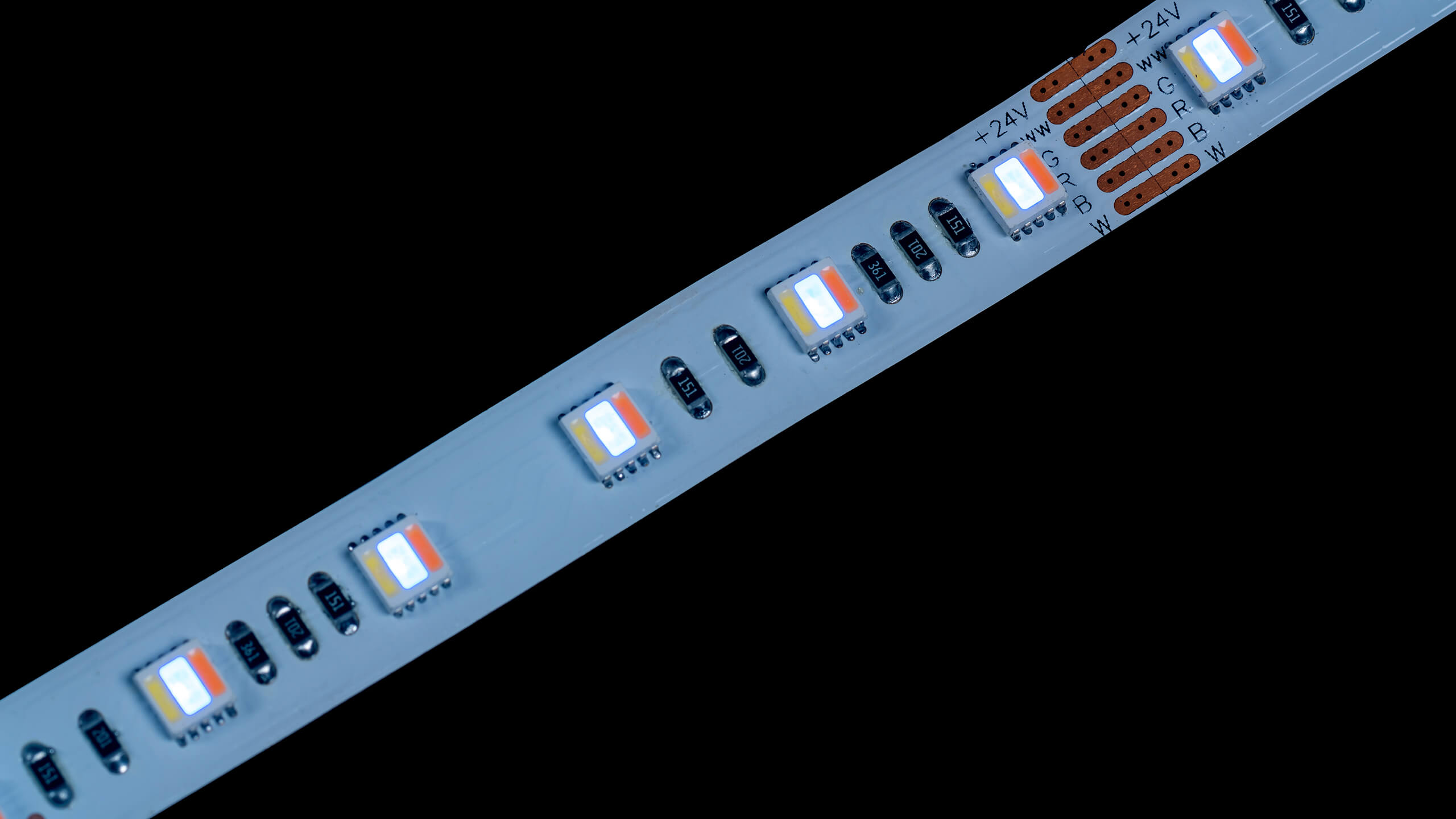

Magic Color Series LV-SMD5050-60P-RGB+TW
- 22W/M Vivid RGB Output
- 1523lm/M Reliable Light Performance
- 12mm Wider FPCB Layout
:
RA:
Specifications
| Input Voltage | 24V/DC | IP Code | IP20 |
|---|---|---|---|
| Light Source | 5050RGB | LED Service Life | 7 Years |
| Roll | / | Dimmable | Yes |
| RA | CRI >80/90 | Beam Angle | 120° |

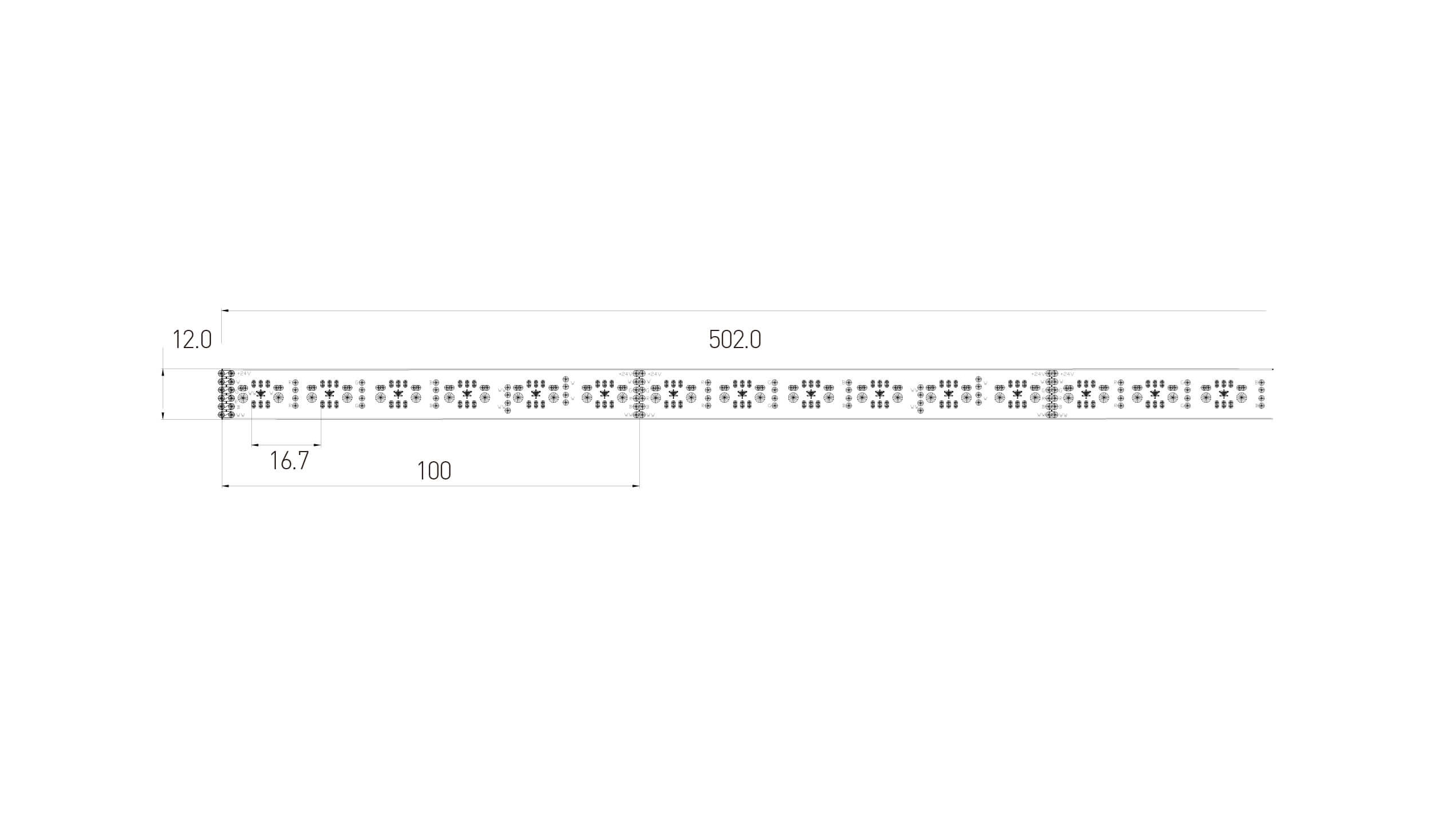

| Cutting Intervals | 100MM / 6LED | Led Distance | 16.66mm |
| Bending Direction | / | Wattage | 22W/M |
| CCT | / | FPCB Width | 12mm |
| Luminous Flux | 1523lm/M | Max Run Length | 5M |
| Body Size(mm) | / | Light Effect | / |
| Material | / | Light Body Color | / |
| Luminous Way | / | Installation | / |
| Lamp Brand | / | Drive Brand | / |
Video Preview
Frequently Asked Questions
Yes. The strip supports cut points at 5 cm intervals, allowing you to trim it according to installation needs.
Minimum order quantity depends on the selected configuration and project requirements. Contact us to confirm the most suitable MOQ for your order. </p
Still have questions?
Our technical team is here to help. Contact us for detailed product information and application support.
